| مكان المنشأ | الصين |
| اسم العلامة التجارية | KUKA |
| رقم الموديل | LBR iiwa 7 R800 |

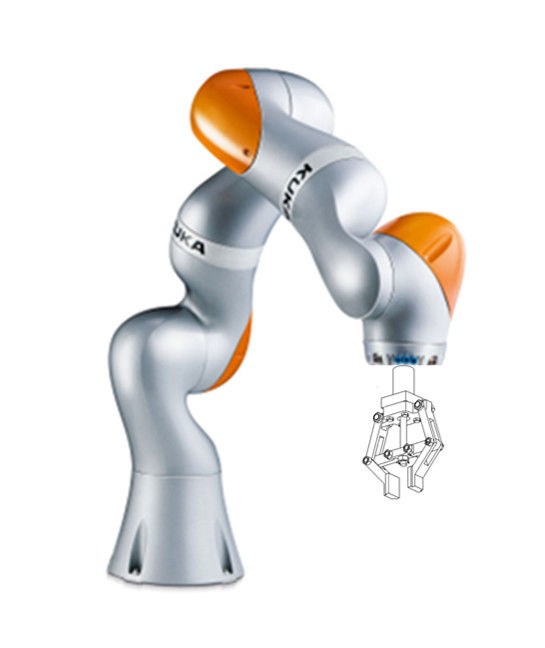

Kuka Collaborative Robot Lbr Iiwa 7 Seven Axis For Assembly
The KUKA Collaborative Robot LBR iiwa 7 stands as a pinnacle of innovation in the field of robotics, specifically designed to revolutionize assembly processes across various industries. With its seven-axis configuration, this robotic arm offers unparalleled flexibility, precision, and safety, making it an ideal choice for modern manufacturing environments where human-robot collaboration is becoming increasingly prevalent.
The seven-axis design of the LBR iiwa 7 sets it apart from traditional six-axis robots. The additional axis provides an extra degree of freedom, enabling the robot to perform complex movements with greater ease. This enhanced range of motion allows the robot to reach into tight spaces, navigate around obstacles, and perform tasks that would be challenging or impossible for a six-axis robot. For example, in an assembly line where components are closely packed, the LBR iiwa 7 can maneuver its end-effector precisely to pick up and place parts without interfering with surrounding equipment or personnel.
The seven-axis configuration also contributes to the robot's improved dexterity. It can mimic human-like arm movements more closely, allowing for delicate and precise handling of objects. This is particularly valuable in assembly tasks that require fine motor skills, such as inserting small components into tight-fitting sockets or assembling intricate electronic devices. The robot's ability to rotate its wrist in multiple directions gives it the flexibility to perform tasks from various angles, reducing the need for repositioning and increasing overall efficiency.
Safety is a top priority in human-robot collaboration, and the LBR iiwa 7 excels in this area. It is equipped with advanced collision detection and avoidance systems that can sense the presence of humans or obstacles in its workspace. If the robot detects a potential collision, it can immediately slow down or stop its movement, preventing accidents and ensuring the safety of nearby workers. This feature allows humans and robots to work side by side in the same workspace without the need for extensive safety barriers, increasing productivity and flexibility.
The LBR iiwa 7 operates at safe speeds and force limitations, further enhancing its suitability for collaborative applications. The robot's speed can be adjusted based on the task requirements and the proximity of humans, ensuring that it moves at a pace that is safe and comfortable for workers. Additionally, the force limitations prevent the robot from applying excessive force that could cause injury, making it a reliable and trustworthy partner in the assembly process.
Advantage:
| Service | We supply 3d model, foundation and flange dimensions of related robot. Supply training video to fresh customer. The video include of how to mastering,how to connect the cable,how to programming and so on. If you have any problem, call us anytime or sent email to us. |
| Robot Maintains | The robot we suggest maintains every one year or 10000 hours. the main job is exchange oil, fans,UPS and so on. If the robot working in terrible environment, just like low temperature or wet environment. So such case we suggest half year or 5000 hours to do maintains. |
| Warranty | 1 Year |
Place of origin:China
Brand Name: KUKA
Model Number: LBR iiwa 7 R800
| Type: KUKA LBR iiwa 7 R800 | Reted Payload: 7kg |
| Reach: 800mm | Repeatability: 0.1mm |
| Axis: 7 | Weight: Approx. 23.9kg |
| Mounting Position: Floor | Protection Rating: IP54 |
| Footprint: | Controller: KUKA Sunrise Cabinet |
| Item | value |
| Applicable Industries | Hotels, Garment Shops, Building Material Shops, MachineryRepair Shops, Manufacturing Plant, Food & Beverage FactoryFarms, Restaurant, Home Use, Retail, Food Shop, PrintingShops, Construction works , Energy & Mining, Food &Beveraqe Shops, Other, Advertising Company |
| After Warranty Service | Video technical support, Online support |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | Hot Product 2019 |
| Warranty of core components | 1 Year |
| Core Components | PLC |
| Condition | New |
| Place of Origin | China |
| Warranty | 1 Year |
| Service mode | Online support |
| Type | KUKA LBR iiwa 7 R800 |
| Rated payload | 7 kg |
| Reach | 800mm |
| Repeatability | 0.1mm |
| Axis | 7 |
| Weight | Approx. 23.9kg |
| Mounting position | Floor |
| Protection rating | IP54 |
| Footprint | |
| Controller | KUKA Sunrise Cabinet |
FAQ:
*Q:Why are we?
A:Our company works robot industry over fifteen years. Programming robot inclusive KUKA ,ABB,YASKAWA,FANUC,ESTUN(Chinese ROBOT ),EFORT(Chinese robot). the business involved simulation,programming,service after warranty period.
*Q:How about our service concept?
A:We keep on phone open all day. Stand in customer view to provide rationalization solution and robot selection.
*Q:What products can we offer?
A:robot, energy supply for robot, linear for robot. Training for robot. Gripper for handling.
*Q:Why you purchase from us?
A:You don’t worry about after-sales problem to cooperation with us.
About us
Companies in the "customer first, quality first, the user first" purpose, we will as always Warm and sincere service for all users, friends and customers, create brilliant tomorrow. Our main customers are Baosteel, INO,Volkswagen,Geely and so on. Over fifteen years experience in the robot industry. Our engineers can design solution,simulation,program and troubleshooting. So if you have any issue of robot. Call us any time. We will try our best to solve the problem. The other advantage is after-sales service,we have robot spare parts in stockroom. We can response promptly to help you resolve robot fault. We also have robot training. The course include programming, electric, mechanic and expert programming. So welcome to join our college.
